I've encountered the same issue with version 57 (32 and 64 bit) when playing H.264 videos from https://vimeo.com (for example https://vimeo.com/187662096). The memory consumption of the gpu process will increase seemingly without limit. In version 56 this was not the case and the memory consumption stayed within reasonable limits. Videos with VP9 codec work fine, OGG videos have the same problem.

I've encountered a similar problem with Chrome version 57.0.2987.37 beta (64-bit) with Flash-based contents (without video), so I'll try to fill in some details:

I first noticed that my memory usage was being bloated, and managed to pinpoint a certain Flash-based browser game to be the culprit.
(Memory increase in about-real-time (as gif): https://twitter.com/kitamiya/status/829708822033813504 )

It seems to be the case that:
 - Memory increase occurs on certain screens only; that is, those where there is some kind of motion effect;
 - On the relevant screens, no user input is necessary for the memory increase to continue;
 - Memory increase stops (but does not flush/compress) while viewing a separate tab and keeping the culprit tab alive;
 - Closing the culprit tab seems to initiate a memory flush/compress to free up the bloated memory properly;

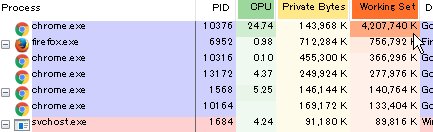

 - Memory usage (as the Working Set) would increase to fill 95%ish of the available memory: https://pbs.twimg.com/media/C4O7ngbUcAIZLHZ.jpg .

This seems to be a problem in memory allocation/flushing/compressing/gc with Flash, since running a simple Flash-based load test will trigger the same effect, although at a slightly slower pace:
(e.g., running the test at http://wonderfl.net/c/yIH0 worked for this purpose)

Comment #2 mentions the GPU process, and indeed we seem to have a significant memory regression in the GPU process at high percentiles:

https://goto.google.com/ogsiv (link for Googlers only)

Adding a bunch of relevant folks. Can we see if we can get a repro and then a memory-infra dump?

Oh, and thanks for the report! :)

Just to clarify things: It's not just flash, we experienced the massive memory consumption mainly with H.264 and OGG video files (in regards to comment #2, we work in the same team). See e.g. Vimeo or any other H.264 mp4 video file for reproduction.

Hey Ryan,

If I take the link you provided and switch it from Beta to Dev, we can see when this hit the Dev channel.

It's a little hard to interpret if the issue started in 57.0.2970.0, or came after, but it was a big enough regression to be seen on the lower channels.

+Bruce as FYI

https://goo.gl/VBBYqq (Googlers only) shows that it is 57.0.2970.0 that introduced the regression. Since that was the first dev-channel release for 57, not sure how to generate a diff that makes sense.

Let's get this resolved (obviously) in time for Stable.

I'm going to assign an owner to get some traction on this.

https://chromium.googlesource.com/chromium/src/+log/57.0.2969.0..57.0.2970.0?pretty=fuller&n=10000 change log from 2969, and here's the one from the last dev before 2970,

https://chromium.googlesource.com/chromium/src/+log/57.0.2950.4..57.0.2970.0?pretty=fuller&n=10000

+jbauman given mention of Windows GPU process in c#2,#6 and assortment of DXVA changes in the change log.

https://uma.googleplex.com/timeline_v2?sid=e86463ba0307c447e955ea25d0ec7773

Splitting by canary makes it look like 2956..2957 is the start of the regression:
https://chromium.googlesource.com/chromium/src/+log/57.0.2956.0..57.0.2957.0?pretty=fuller&n=10000

This changes how memory is reported from the GPU shared memory buffers, +hajimehoshi in case this is just a reporting change.
https://chromium.googlesource.com/chromium/src/+/6c8897721e2df9a0ec3677d0a13d677c457e5e1e

I'm pretty sure this is caused by 	7bbecdb7f45d60b81e2d2578944daaafed174d93

The following revision refers to this bug:
  https://chromium.googlesource.com/chromium/src.git/+/ab60729c01d4e123052aa4fecdf3752dc57bf9c2

commit ab60729c01d4e123052aa4fecdf3752dc57bf9c2
Author: jbauman <jbauman@chromium.org>
Date: Tue Feb 14 03:15:00 2017

Fix IMFSample leak in DXVAVideoDecodeAccelerator

Since r439662 DXVAVideoDecodeAccelerator has been adding an extra
reference to the IMFSample, causing a leak. Switch more code to use
ScopedComPtr to fix this.

BUG= 689678
CQ_INCLUDE_TRYBOTS=master.tryserver.chromium.linux:linux_optional_gpu_tests_rel;master.tryserver.chromium.mac:mac_optional_gpu_tests_rel;master.tryserver.chromium.win:win_optional_gpu_tests_rel

Review-Url: https://codereview.chromium.org/2693923003
Cr-Commit-Position: refs/heads/master@{#450218}

[modify] https://crrev.com/ab60729c01d4e123052aa4fecdf3752dc57bf9c2/media/base/win/mf_helpers.cc
[modify] https://crrev.com/ab60729c01d4e123052aa4fecdf3752dc57bf9c2/media/base/win/mf_helpers.h
[modify] https://crrev.com/ab60729c01d4e123052aa4fecdf3752dc57bf9c2/media/gpu/media_foundation_video_encode_accelerator_win.cc

Updating the Summary.  Is there enough data to justify a Merge-Request?

Yeah, the fix is in canary and seems like a good idea to merge.

Your change meets the bar and is auto-approved for M57. Please go ahead and merge the CL to branch 2987 manually. Please contact milestone owner if you have questions.
Owners: amineer@(clank), cmasso@(bling), ketakid@(cros), govind@(desktop)

For more details visit https://www.chromium.org/issue-tracking/autotriage - Your friendly Sheriffbot

The following revision refers to this bug:
  https://chromium.googlesource.com/chromium/src.git/+/1ad1e31fe09edd48255871b00db7cd8298d9e7b6

commit 1ad1e31fe09edd48255871b00db7cd8298d9e7b6
Author: John Bauman <jbauman@chromium.org>
Date: Thu Feb 16 01:02:53 2017

Fix IMFSample leak in DXVAVideoDecodeAccelerator

Since r439662 DXVAVideoDecodeAccelerator has been adding an extra
reference to the IMFSample, causing a leak. Switch more code to use
ScopedComPtr to fix this.

BUG= 689678
CQ_INCLUDE_TRYBOTS=master.tryserver.chromium.linux:linux_optional_gpu_tests_rel;master.tryserver.chromium.mac:mac_optional_gpu_tests_rel;master.tryserver.chromium.win:win_optional_gpu_tests_rel

Review-Url: https://codereview.chromium.org/2693923003
Cr-Commit-Position: refs/heads/master@{#450218}
(cherry picked from commit ab60729c01d4e123052aa4fecdf3752dc57bf9c2)

Review-Url: https://codereview.chromium.org/2699533005 .
Cr-Commit-Position: refs/branch-heads/2987@{#535}
Cr-Branched-From: ad51088c0e8776e8dcd963dbe752c4035ba6dab6-refs/heads/master@{#444943}

[modify] https://crrev.com/1ad1e31fe09edd48255871b00db7cd8298d9e7b6/media/base/win/mf_helpers.cc
[modify] https://crrev.com/1ad1e31fe09edd48255871b00db7cd8298d9e7b6/media/base/win/mf_helpers.h
[modify] https://crrev.com/1ad1e31fe09edd48255871b00db7cd8298d9e7b6/media/gpu/media_foundation_video_encode_accelerator_win.cc

Thank you for the fix. I've checked the problems mentioned in comment #3 via Canary, and most problems seem to be fixed.

One problem still remains, however, and results in a quick memory bloat (5GB/min)
as shown here: https://pbs.twimg.com/media/C4x5HFkUkAArpdJ.jpg:orig

I'm unsure if this is a related memory issue, or separate, and also if this merits being reported as a separate issue...

The problem may be slightly difficult to reproduce as well, since the relevant page requires user signup+login, and is in Japanese as well...

I'd be happy to provide dumps and the like if necessary.


Tested using: Chrome 58.0.3013.0 (Official Build) canary (64-bit) on Windows10
 (Not reproducible in latest stable releases of Chrome/Firefox/IE)

Steps for reproduction:

1. Open game from below URL:
 http://www.dmm.com/netgame/social/-/gadgets/=/app_id=738496/
 (requires user login)
 (initial access may provide a cushion page)
2. Click on title page to enter game;
 (first play may initiate a tutorial in the likes of https://www.youtube.com/watch?v=FXvuvOgDz5g )
3. Click on "ショップ" (shop menu) on the navigation on the left of the game screen:
 https://pbs.twimg.com/media/C4x_F2uVMAAFHUo.jpg:orig
4. Leave the resulting screen open to see memory bloat

After working on comment #26, it seems this particular problem is GPU-independent
(running Chrome with the GPU disabled using the flag "--disable-gpu" does not stop the memory bloating)
so I've raised this portion as a separate issue:

Regression: memory bloat while running Flash game (Flower Knight Girl)
https://bugs.chromium.org/p/chromium/issues/detail?id=693124

I feel like this should have been caught by https://chromeperf.appspot.com/report?sid=829d93daa5a935a7e7bae4d558adaffa97ca840abd9782e475cd5cb8e46e64d4 (media.tough_video_cases on windows 10). Maybe the test isn't running long enough?

Actually the win-zenbook was affected - https://chromeperf.appspot.com/report?sid=dcc39649035ed99d76e262301b8dd3e5fd46ac3d3f22335592ed12ec1ddc0852&start_rev=433947&end_rev=452513

Do we not have alerts on this? Or was it just a small enough change to be in the noise?

I filed another bug:  crbug.com/695615

I may be a bit confused, and so I'd appreciate clarification; as I understand it,

- the current Beta is 57.0.2987.74 based on refs/branch-heads/2987@{#632}
- the above fix has been merged into this @ refs/branch-heads/2987@{#535}

and thus, the current Beta should include the above fix.

However, I STILL SEE the memory bloats in the current Beta, in cases that were tested as fixed in the Canary 58.0.3013.0 based on master@{#450530}, as in comment 26.
(The bloat cases are as in comment 3, and in addition I've found that videos at http://www.nicovideo.jp also leak)

Is there a chance that other related commits in master need to be merged into this branch as well to fix this issue?

Re comment #31. Do you know what process is leaking? You can check using chrome's task manager (hit shift+esc in chrome) to see if it's flash, the GPU process, or something else.

Our UMA measurements seem to show that GPU usage is back to normal in 57.0.2987.74, but plugin process memory usage is probably still elevated due to  bug 693124 .

I ran a quick test using nicovideo (playing any video will do) and the top screen from Flower Knight Girl.

It seems I had hardware acceleration turned OFF for Beta when the problem occurred in comment 31, and so this is probably not a GPU issue. (My apologies for the confusion here. )

On the contrary, turning hardware acceleration ON actually STOPS the memory bloat, for some reason....

test ver \ GPU | on | off
---------------|----|-------
current Beta   | ok | bloat
Canary@cmnt26  | ok?| ??
current Canary | ok | ok

So one possibility is that  bug 693124  fixes this issue, and that my checking in comment 26 (before that fix) happened to use GPU.

However,  bug 693124  occurred REGARDLESS of whether GPU is used or not, and does not seem to fit the current case pattern, which is slightly unsettling, and may point to another issue (fixed in Canary and not in Beta yet)...

My fear is that the relevant fix may be in Canary, but not yet scheduled to be merged for M57 Beta.
Should I wait for the next Beta to be released, and file another bug if this issue reproduces there, or should I try to start something before that?
(The best would be to check if this problem persists with the about-to-be-fixed next Beta, if it is available somehow... )

(Since analysis shows no memory bloat in Chrome's task manager, but Process Explorer shows the chrome.exe --type=ppapi to have a Working Set memory bloat, and this is true for  bug 693124  as well, I would hope it is resolved by the same issue...)

Ok, that makes sense.  bug 693124  should happen only when flash isn't using the GPU to draw the video, while this bug should happen when it is using the GPU. The reason you can sometimes see the leak from  bug 693124  even when the GPU is enabled (e.g. on flower knight girl) is that some flash content won't use the GPU for rendering even if it's enabled.

I'd recommend waiting until beta is released with the fix for  bug 693124  before trying to test this again. If the leak persists after that, then it's a problem.

Thank you for the explanation; I see now that the fix for  bug 693124  is very likely to be the wanted fix.
I'll wait for the beta release, and file another issue iff a leak still occurs there.
